Tired of looking for the specifications or remembering which bolt goes where? Me too.. So i made this:
Starter bolts tightening torque 38-51Nm
Bellhousing tightening torque 64-89Nm

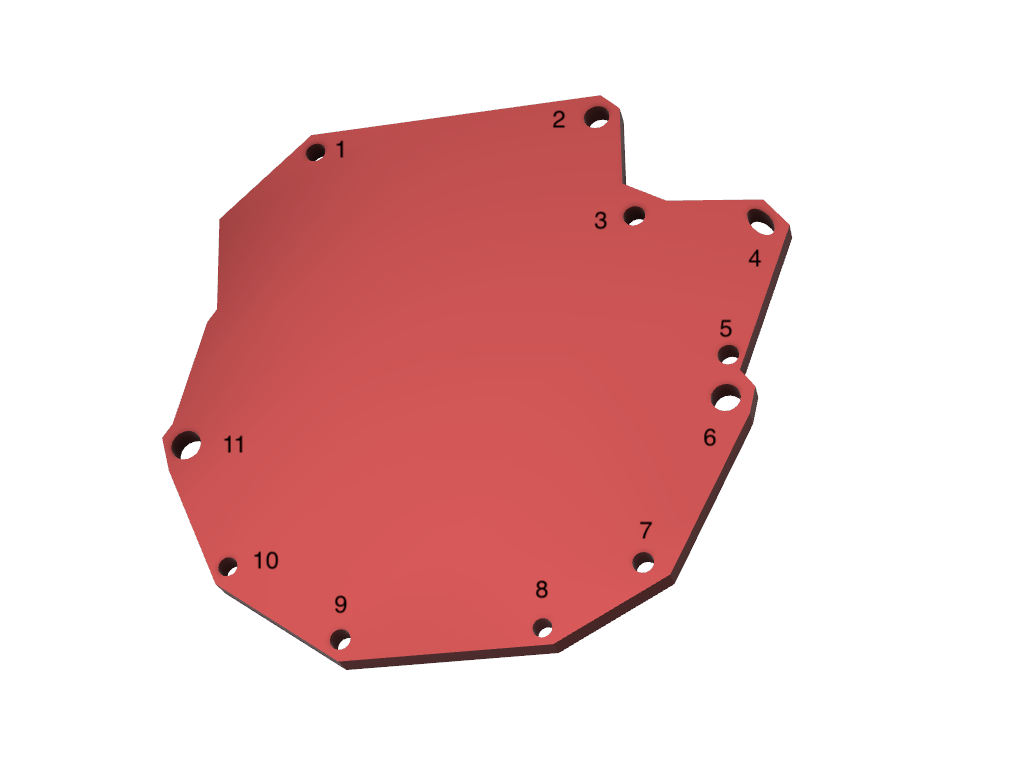

| NR. | Dimentions | Bolt PN | Nut PN |
| 1 | M12 x 1.5 x 60mm | 997961260 | |
| 2 | M12 x 1.5 x 60mm | 997961260 | |
| 3 | Starter bolt | B6BG-18-401A | |
| 4 | Starter bolt | B6BG-18-401A | |
| 5 | Starter bolt | B6BG-18-401A | 9994-01-000 |
| 6 | M12 x 1.5 x 75mm | 997961275 | 99940-1201 |
| 7 | M12 x 1.5 x 60mm | 997961260 | |
| 8 | M12 x 1.5 x 60mm | 997961260 | |
| 9 | M12 x 1.5 x 60mm | 997961260 | |
| 10 | M12 x 1.5 x 60mm | 997961260 | |
| 11 | M12 x 1.5 x 75mm | 997961275 |
